Brands Ensotech Limited
Product Code: SWAVEE2
Availability: Not available

Swave-E2 Sensored Electronic Speed Controller (ESC) makes technology essential to your modern mini R/C car.
Archived by many racers and podium finishes from the previous Swave-E.   Swave-E2 has been completely re-engineered for optimal use, better heating dissipation, increased power output and better protection against certified sensored motors, ideally to use on microscale 1:28 RWD touring car with liner driving style, drifting and stock class race championship.

** If using metal Chassis recommended using Swave-W / W2

Enjoy the best value versus performance ratio, size, weight, technology as well as other advantages.

"Blinky-mode" provides a fair racing environment between racers.  (Shows that all timing advance switched to zero)
Stunning size and weight
Easy-to-use programming
Firmware update available
A professional set of customized parameters for the difficult race track
Automatic recognition of Hall sensor’s position
Settings configurations export and import. (You can save and load configuration or share out)
Aluminum body

Firmware update and change setting  via Android version swave apps
Optional UARTLINK-II programming cable
Optional wireless EnsoBlueth Bluetooth adaptor

Firmware update and change setting via IOS ((beta test flight version)) swave apps
Optional wireless EnsoBlueth2 Bluetooth adaptor

Optional power connector to battery (JST-PH) OR (MR-30 male) + (MR-30 Female)


* Dimensions (mm): 21.8(L)*12.7(W)*7.8(H)
* Weight: 3.3g
* Supply Voltage:  2s LiPo / 2s LiOn
* Const./Brust Current (A):  14/20A (under 90 degree Celsius)
* Sensor input:  1 (5 pins)
* Programming input:  1
* Receive input: 1
* Support motor type (Sensored): Slotless 1528  Brushless DC up to 3500kv
* Support motor type (Sensorless): Slotless 1528mm Brushless DC
* BEC Output: 5.5V / 1.0A

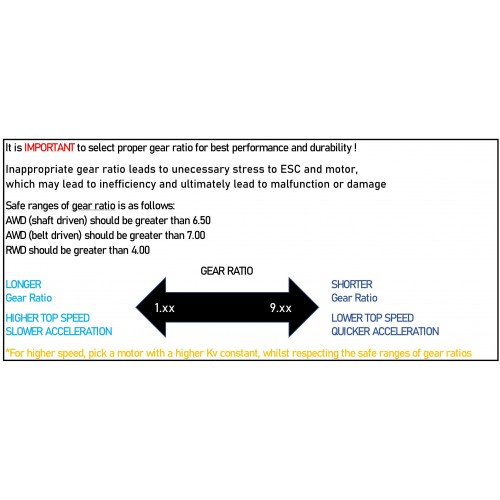

PROPER GEARING ------------- >>> HERE

Package Included:
1* Swave-E2 Electronic Speed Controller
1* Receiver Cable (JST)
1* Receiver Cable (JR)
1* Motor Sensor Cable (product code: CABLE06)

Motor Compliance:
The Swave series of electronic speed controllers (ESC) uses a very unique, groundbreaking and revolutionary patented technology, which only Ensotech masters. This precision technology requires very careful and specific engineering process for sensored motors and demand the use of high-quality motor components (i.e. sensor, PCB, stator, winding etc..) coupled with the accuracy of the motor’s build and timing ‘tuning’. Ensotech certified motors meet all the manufacturing and quality control criteria imposed by Ensotech, and would guarantee the best performance of your Swave series ESC.  The use of non-Ensotech certified motors, shall immediately void the Ensotech warranty.

Ensotech does not impose any restrictions on the use of sensorless 1528 & 1628 sized brushless motor with the Swave series ESC.

Ensotech certified sensored motor list -----> HERE

Tags Swave-E2
